PRO series

NVMe CyCLONE Pro

Define the next generation professional duplicator

In addition to the functionalities offered by Classic, NVMe CyCLONE Pro comprehensively meets professional demands with its dual slots for SATA and M.2 drives. 3 in1 copy/erase/test into a single device. It sets a new standard for professional duplicator in the next generation.

M.2 Cross-Interface Duplication – One Solution for All

With FPGA technology, M.2 slots support both NGFF (M.2 SATA) and NVMe, ensuring high compatibility for cross-interface duplication.
support drive for duplicator

Choose the most efficient copy mode to fit your needs

5 copy modes for SSD/HDD are provided, including Whole Media, System and Files, All Partitions, Percentage, and Non-zero copy. User can choose the most suitable copy mode according to different needs.
Copy Area
System and Files Copy

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4/LVM/XFS), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

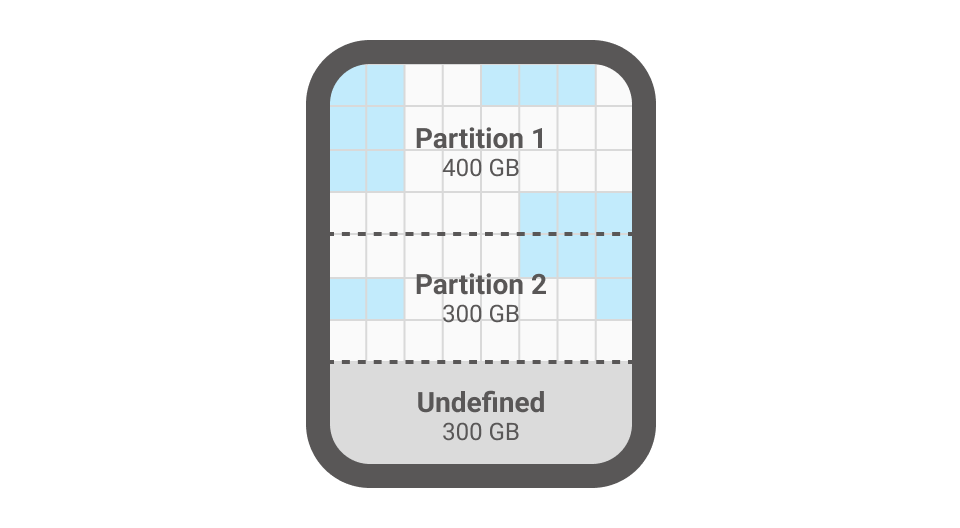

Copy Non-zero Area

Saving TimeNon-zero Area

When the machine is unable to recognize the file system, it performs a copy operation that excludes zero-data area. This can reduce copying time and improve efficiency.
Whole Media Copy

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.
Percentage Copy

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.
All Partition Copy

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.
Device Protection

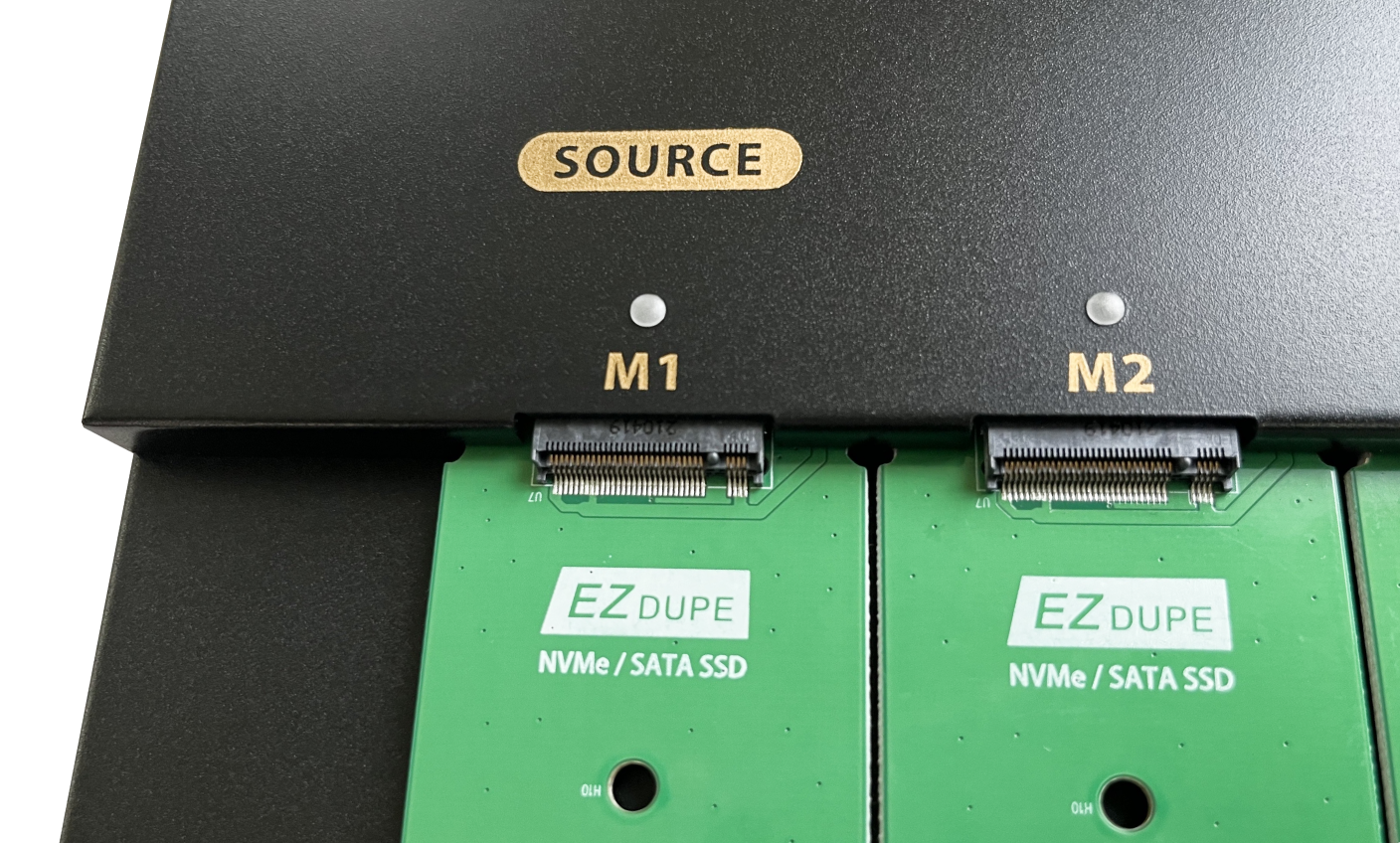

Enable Erase source port, increase the number of erasure ports.

The new feature, Erase Source Port, allows performing erasure operations on the source port, increasing the total number of available ports for erasure and enhancing erasure efficiency.
Enhanced versatility

Pro Series Only

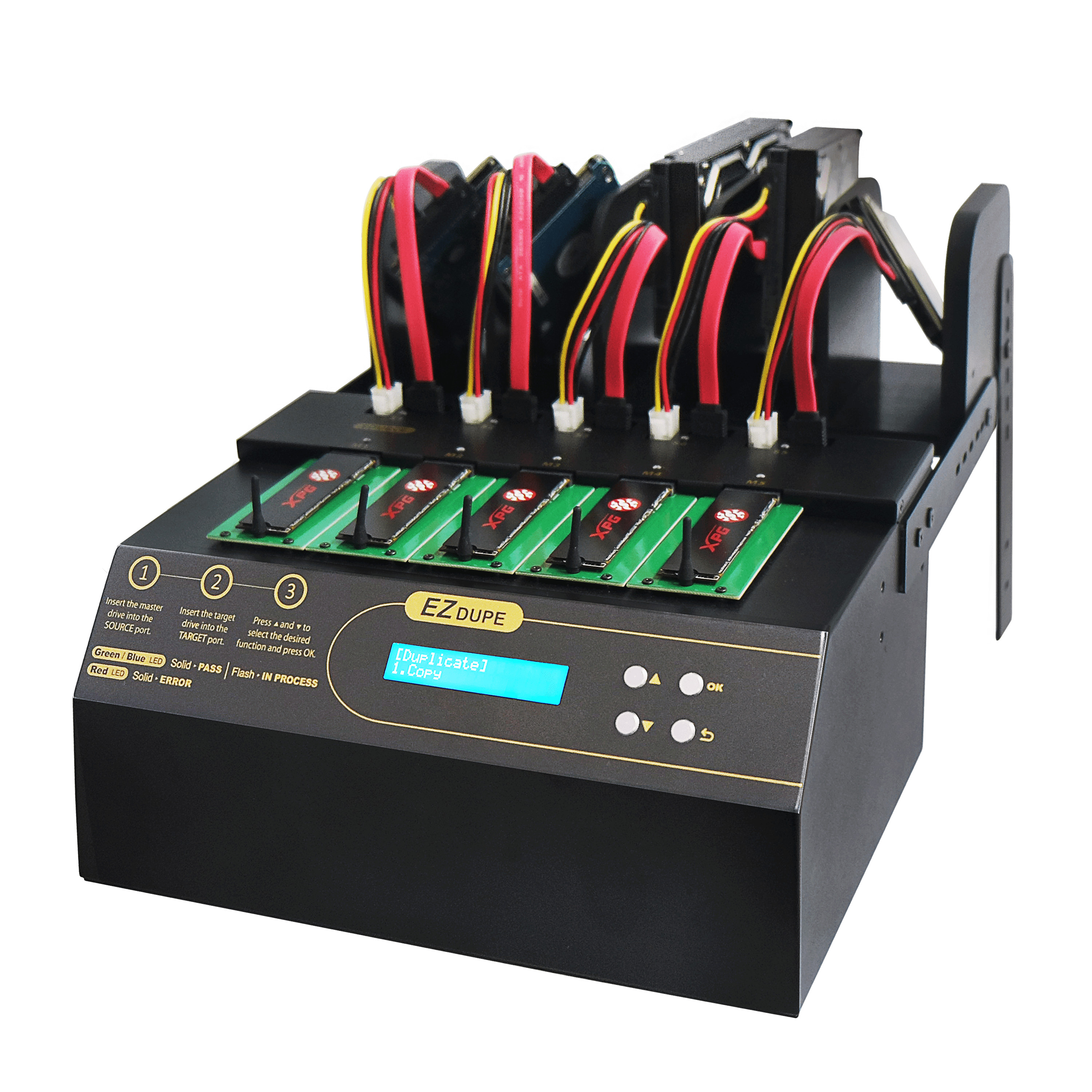

Dual Slot for High-Efficiency Duplication & Erasure

The Pro Series supports simultaneous use of M.2 and SATA. For example, the NVMe CyCLONE Pro 1-4 can duplicate 4 M.2 + 5 SATA drives from a the M.2 source. When erasing, it supports up to 10 devices, significantly boosting efficiency.
Device Protection

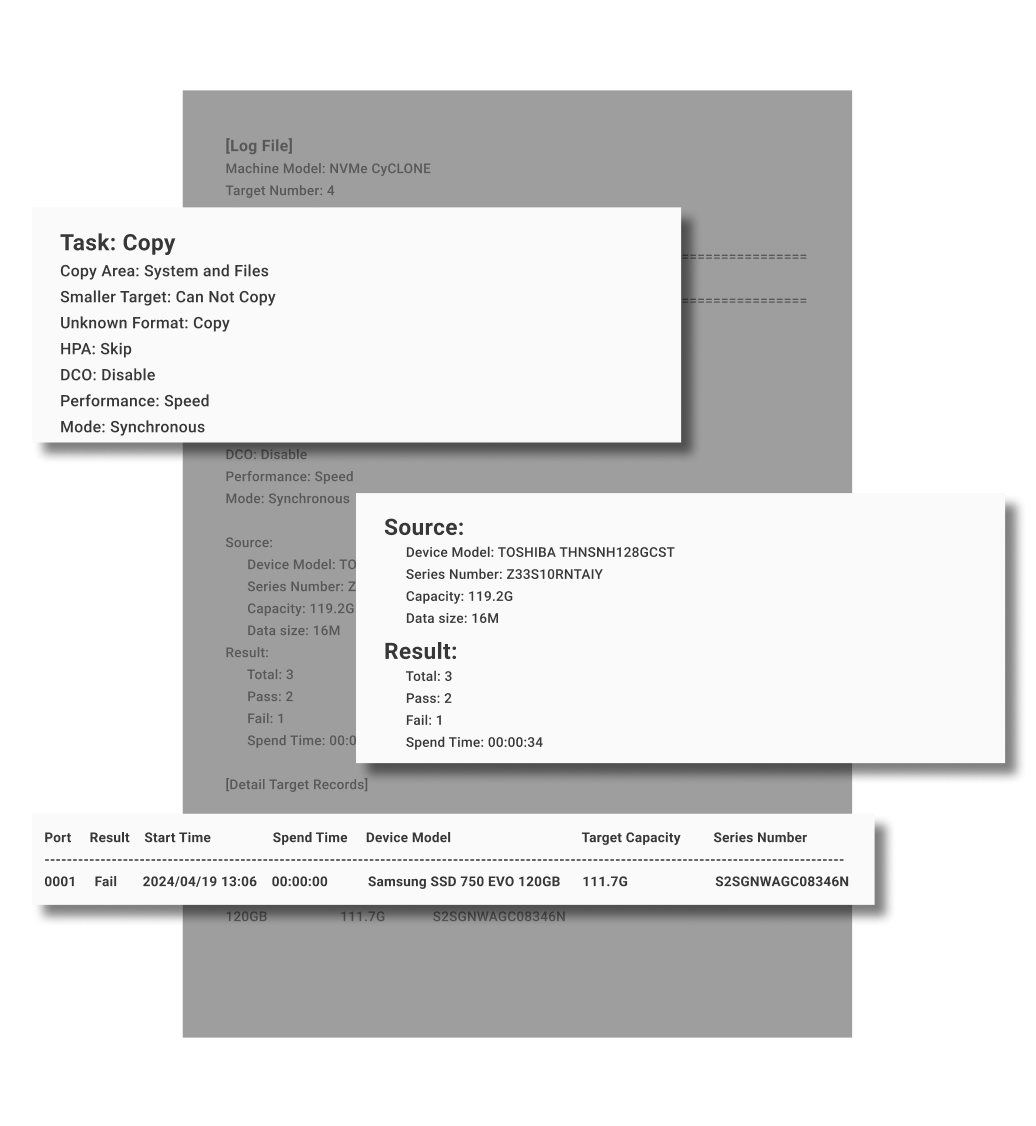

Log for Enhanced Workflow Management

The NVMe CyCLONE features log recording, storing hardware information and results to improve management efficiency. When paired with an optional printer, it can print labels directly, ensuring complete workflow management.
Device Protection

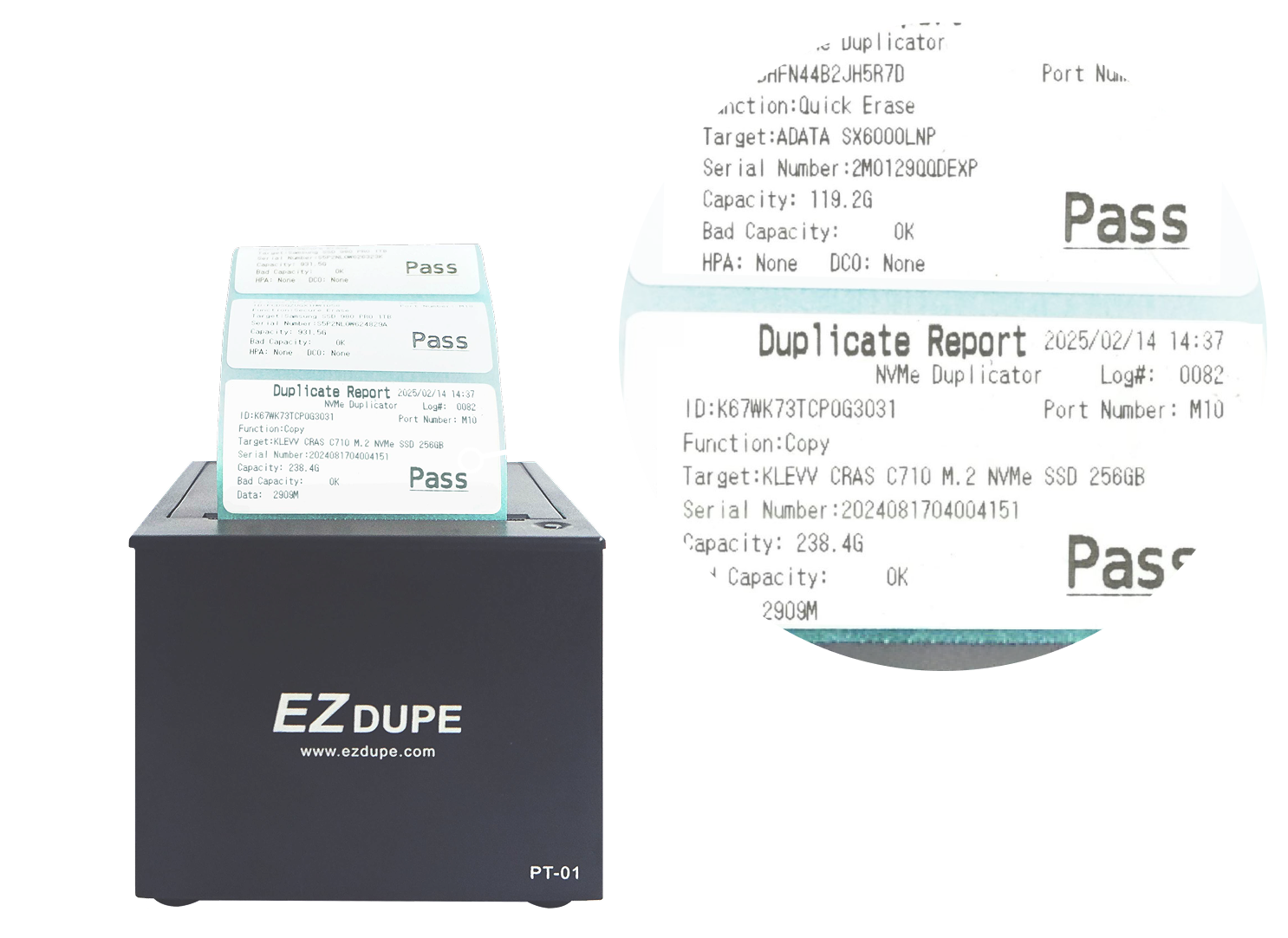

External Printer Support for Label Printing

The NVMe CyCLONE supports external printers, automatically printing device information and operation results upon process completion, enhancing management efficiency.

Eight Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.
NVMe quality check

Powerful Quality Check

H3 Read Test
H5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

9 Testing Criteria
Test range | Bad sector ratio | Read speed threshold | Write speed threshold | Capacity threshold | Format type | Power off times | Power off duration | Execution cycles

4 Testing Results
Bad sector quantity | Tested capacity | Average read speed | Average write speed

The difference between NVMe CyCLONE and NVMe CyCLONE Pro

NVMe CyCLONE
NVMe CyCLONE Pro
M.2 Slot
•
•
SATA Slot
•
Quality Check
•
Erase Modes
7
8

Other Features

Automatically alerts user to remove any slow hard drives to prevent them from slowing down the overall copy speed.

The ports are powered off during standby mode and powered on when working, to prevent short-circuit when the SSD is inserted.

There are two different ways to fix the bracket, allowing users to choose whether to place it on top or at the back, depending on their habits and available space.

Built-in SSD Secure Erase command restores the SSD to factory settings in seconds, ensuring data security and optimal performance.

Supports daisy chaining with identical units, allowing connection of up to 255 storage devices.

NVMe CyCLONE Video

Technical Specification

Operation Type Standalone(No PC required)
Target 300MB/s
4(Model No. DM-HE3-5M04PP)
9(Model No. DM-HE3-5M09PP)
600MB/s
4(Model No. DM-HE6-5M04PP)
9(Model No. DM-HE6-5M09PP)
Copy Speed 300MB/s, 600MB/s
Copy Mode Synchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)/
All Partition Copy/ Percentage Copy/ Non-Zero
Supported Media M.2 NVMe & M.2 SATA & SATA SSD
2.5" and 3.5" HDD/ SSD
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4, LVM, XFS
macOS: HFS, HFS+, HFSX
※Other formats can be copied using the "Whole media" function.
System Memory 256MB
Power Required 100~240V AC
Size

1 to 4:

27.5 * 20 * 30cm (bracket on top)
27.5 *36 * 23cm(bracket at the back)


1 to 9:

46 * 20 * 32 cm(bracket on top)
46 * 36 * 23cm(bracket at the back)
Net Weight 1 to 4: 4.5KG
1 to 9: 7.15KG
Temperature Range Operating：41°F ~ 113°F (5°C ~ 45°C)
Storage：-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating：20%~80%
Storage：5%~95%
Certification FCC, CE, RoHS
